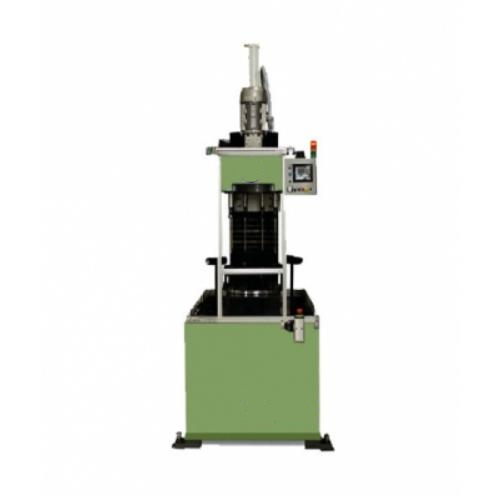

Pro Hone SVHM 5

GET IN TOUCH
Technical Specifications
Honing Dia
2 mm to 25 mm
Honing Length
10 mm to 100 mm
Number of Spindle
3
Stroke Length
200 mm
Spindle Motor
Servo 3.3 Kw
Spindle Speed
50 - 100 RPM
Stroking Type
Servo 3.3 Kw
Stroking Speed
5 m/min Max
Power Connected
10 Kw
Floor Area (Appox)
1500L X 1300W sq.mm
Height
2500 mm

Pro Hone SVHM 6

GET IN TOUCH
Technical Specifications
Honing Dia
2 mm to 25 mm
Honing Length
10 mm to 100 mm
Number of Spindle
6
Stroke Length
200 mm
Spindle Motor
Servo 7 Kw
Spindle Speed
50 - 100 RPM
Stroking Type
Servo 7 Kw
Stroking Speed
5 m/min Max
Power Connected
15 Kw
Floor Area (Appox)
2300L X 2500W sq.mm
Height
2500 mm

We provide variants of above machine to suit the specific customer requirements.
